CPU

Intel?   Celeron? J6412 4C/4T 2.0GHz 1.5MB

Memory

Slot   Number

1

Type

DDR4   SO-DIMM

Max   Size

16GB

Channels

Single   Channel

Graphics

Controller

Intel?   UHD Graphics for 10th Gen Intel? Processors

HDMI

1

EDP

1

LVDS

2

Multi   Display

Triple   Displays

Storage

SATA

1

MSATA

1

COM

Port   Number

6

Mode

6×RS232，COM2可切換RS232/RS485模式

PWR

COM2/COM3可選5V/12V供電

Expansion Slot

Mini-PCIe

1，支持WIFI，可選支持3G/BT（默認(rèn)無USB信號）

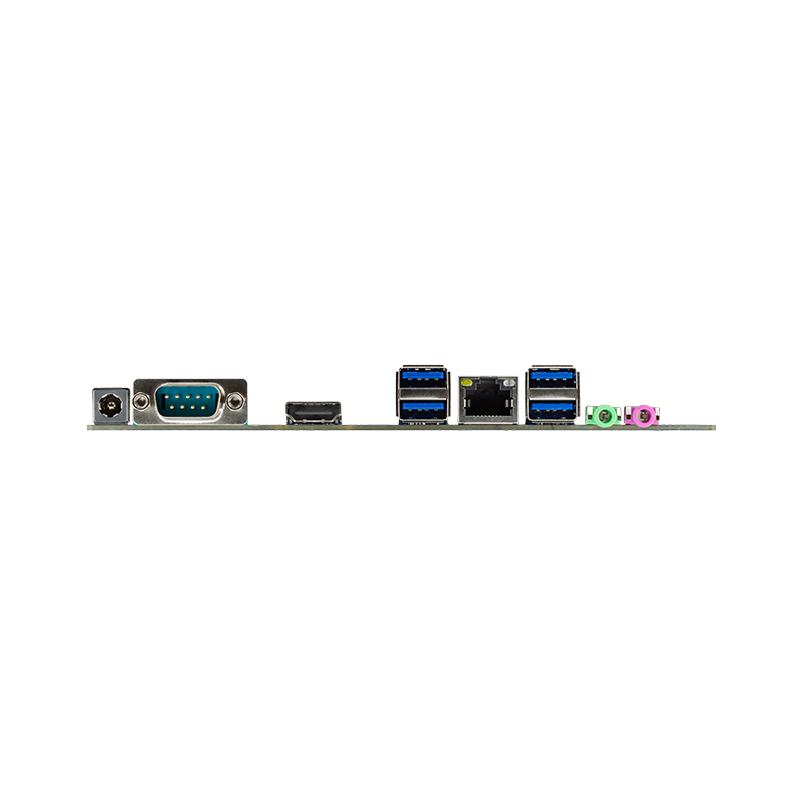

Rear IO

1×DC_IN，

1×COM

1×HDMI

4×USB3.0

1×LAN   (RTL8111H)

1×AUDIO (Line-out   + Mic-in)

Internal   Connector

2×LVDS，2×INVERT

1×JSMB

5×JCOM，1×LPT

1×F_AUDIO，1×JSPK

3×USB2.0   Header，可擴展6個USB2.0接口(JUSB3插針2-4-6-8pin和Mini-PCIe共用信號，默認(rèn)插針可用)

1×SIM

1×JGPIO   4out-4in，1×F_PANEL

1×SATA_PWR，1×CPU_FAN，1×SYS_FAN

Mechanical & Environment

Dimension

170×170mm

PWR Input

DC12V

Operation

0~50℃，10%~90%RH，non-condensing

Storage

-25~75℃，5%~95%RH，non-condensing
