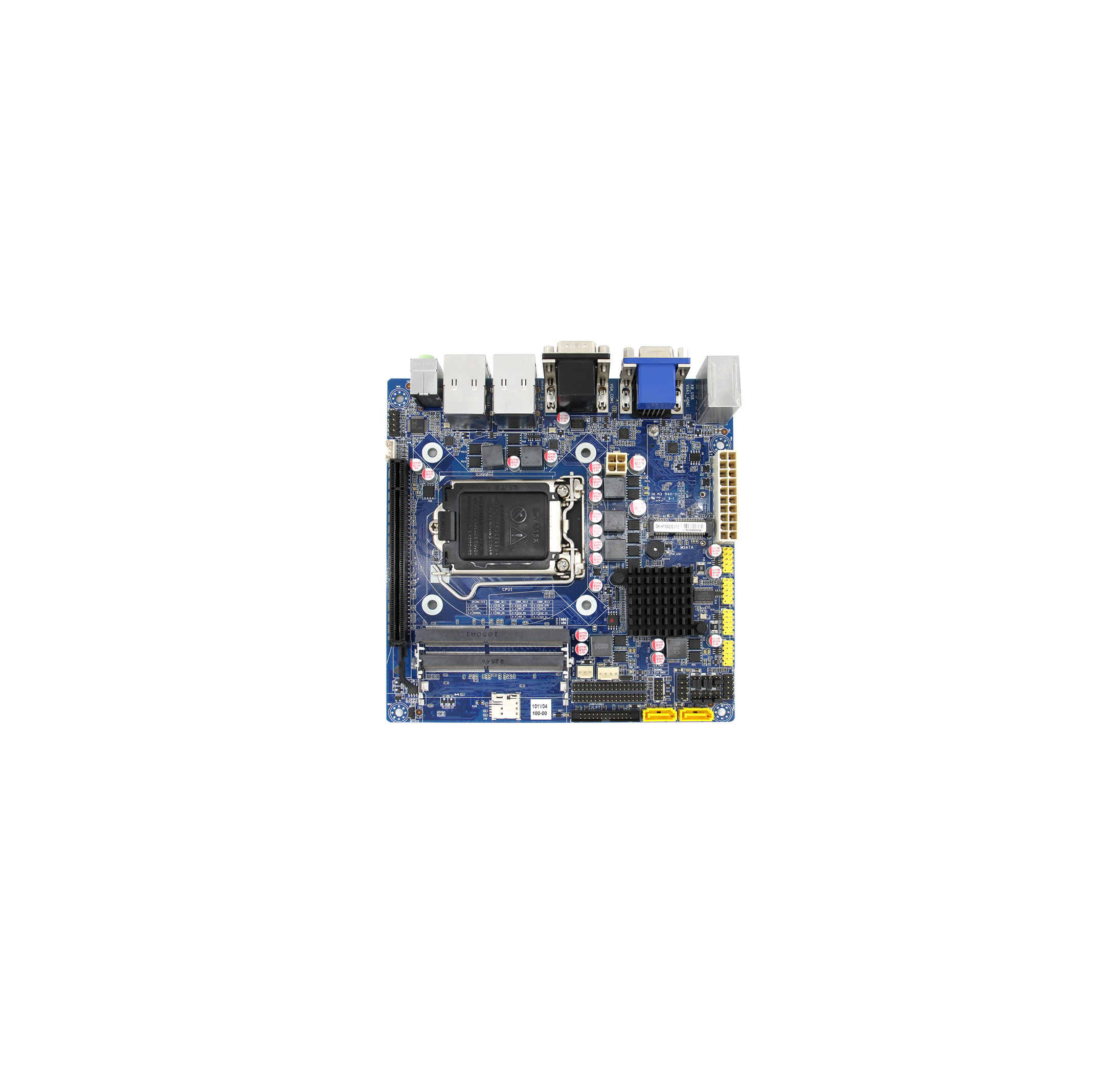

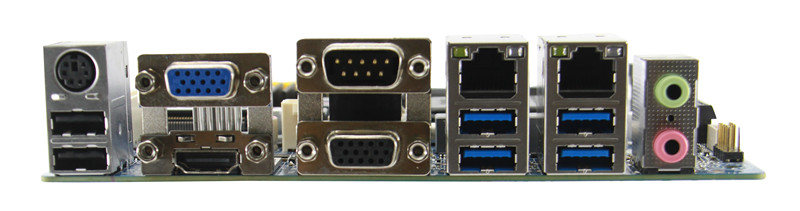

PS/2

1(兼容Keyboard&Mouse)

HDMI

1

COM

1

USB

4×USB3.0，2×2.0

LAN

2

Audio

1×Line-out，1×Mic-in

VGA

2

Internal Connector & Jumper

USB

4×USB2.0插針,可擴展8個USB2.0接口

F_AUDIO

1×前置音頻插針

GPIO

1，4in-4out

FAN

1×CPU_FAN，1×SYS_FAN

SPK

1

MSATA

1

Min_PCIe

1

SIM

1

COM

9

F_PANEL

1

JLPT

1

PCIex16

1

JAT/ATX

1，上電開機設(shè)置跳帽

COM2_SEL

3，COM2 RS232/422/485模式選擇跳帽

JPCOM

3，COM2~COM4 5V/12V 供電選擇跳帽

Mechanical & Environment

Dimension

170×170mm

PWR Input

ATX

Operation

0~50℃，10%~90%，non-condensing

Storage

-25~75℃，5%~95%，non-condensing

CPU

支持Intel? 第6、7代 Core? i7/i5/i3、Pentium?、Celeron?系列處理器

PCH

Intel?   H110

Memory

Slot   Number

2

Type

DDR4   SO-DIMM 2133/2400

Max   Size

32GB

Channels

雙通道

Graphics

Controller

Intel?   HD Graphics

VGA

2

HDMI_IN

0

HDMI

1

DP

0

LVDS

0

eDP

0

Multi   Display

雙屏克隆/擴展顯示

Storage

SATA

2

MSATA

1

COM

Port   Number

10

Mode

RS232,com2可選RS422/485模式

PWR

Com2~4第9腳可選5V/12V供電

Expansion Slot

PCIe

1xPCIex16

Mini-PCIe

1

M.2

0
